A groundbreaking microchip, remarkably compact at the size of a single rice grain, has demonstrated the ability to generate a highly structured spectrum of light, dubbed an "optical rainbow," an advancement poised to fundamentally reshape future communication infrastructure, particularly 6G networks, and provide ultra-precise timing for emerging quantum technologies. This sophisticated photonic device represents a significant stride in overcoming critical hurdles in producing the stable, high-frequency electromagnetic signals essential for next-generation wireless systems and advanced scientific instrumentation.
The global demand for data continues its relentless ascent, necessitating a paradigm shift in how information is transmitted and processed. Current wireless technologies, primarily operating within the microwave and sub-6 GHz spectrum, are rapidly approaching their capacity limits. This impending "spectrum crunch" threatens to impede the development of increasingly data-intensive applications, from augmented and virtual reality to autonomous systems and the pervasive Internet of Things. Addressing this challenge requires unlocking new frequency bands with vastly greater bandwidth potential.
Millimeter wave (mmWave) frequencies, residing in the 30 to 300 GHz range of the electromagnetic spectrum, offer a compelling solution. Their shorter wavelengths allow for significantly higher data rates and capacities compared to conventional radio frequencies. However, harnessing mmWave for practical applications has been fraught with difficulties, primarily stemming from the formidable technical requirements for generating these signals with the requisite precision, stability, and power efficiency. Traditional electronic methods often struggle to produce stable, high-quality signals at these extreme frequencies, particularly when attempting to generate multiple distinct frequencies simultaneously.
Researchers, including a collaborative team from Loughborough University’s Emergent Photonics Research Centre, have engineered a novel system that effectively circumvents these limitations. Their innovation lies in generating a series of precisely spaced optical frequencies which can then be efficiently converted into multiple high-frequency electromagnetic signals. This capability is pivotal, as each distinct frequency can potentially serve as an independent channel for data transmission, exponentially increasing the capacity of a given communication link. The implications extend far beyond telecommunications, promising significant advancements in radar systems, high-resolution spectroscopy, and even astronomical observation, where the ability to generate and manipulate these high-frequency signals with unprecedented control opens new avenues for scientific inquiry and technological development.

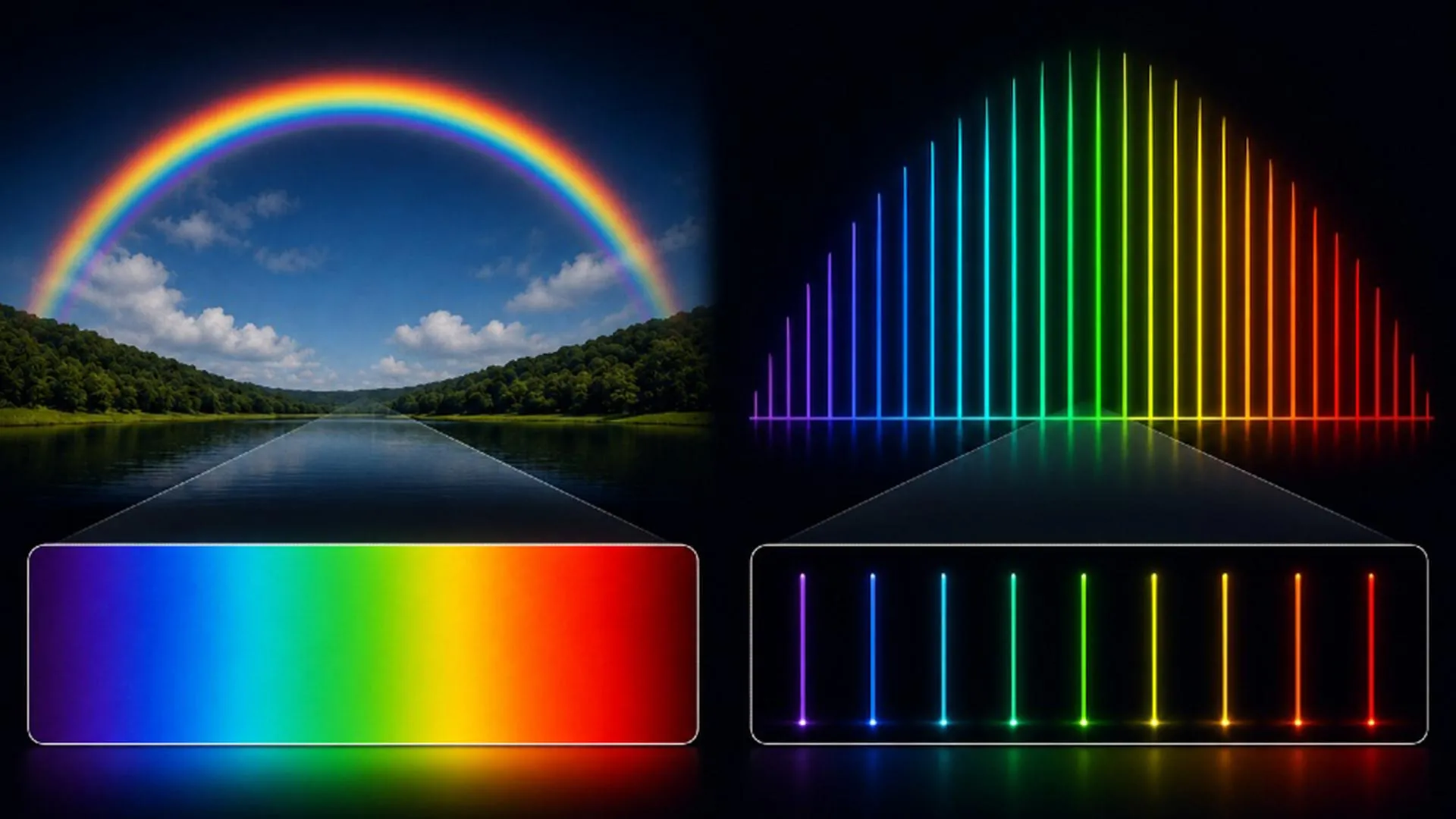

At the heart of this breakthrough lies a device known as an optical microcomb. Conceptually, a microcomb generates an array of extremely precise, evenly spaced light frequencies, analogous to the teeth of a comb or the distinct colors of a rainbow, albeit in spectral regions often invisible to the human eye. These optical frequencies possess inherent stability and can be down-converted into the desired millimeter waves using specialized antennae. While earlier research had demonstrated the potential of microcombs to produce single, precise millimeter-wave frequencies, the true transformative power emerges from the ability to generate numerous such frequencies concurrently. This multichannel capability is critical for realizing the full potential of 6G, where massive data throughput will be a defining characteristic.
The challenge in achieving this multi-frequency precision has historically been the stability and signal quality of the microcomb itself. Conventional microcomb systems typically rely on injecting laser light into a tiny optical resonator – a structure fabricated directly onto a microchip designed to trap and circulate light. While effective, these on-chip resonators can be susceptible to environmental fluctuations and often require careful, often complex, external stabilization mechanisms to maintain their performance.
The innovation presented in the recent Nature Communications paper introduces a radically different approach to microcomb generation. Instead of a purely on-chip system, the Loughborough-led team developed a hybrid architecture that couples the chip-based microresonator with a much larger, external loop of optical fiber. Within this integrated system, laser light continuously circulates through both the chip and the fiber loop. This continuous feedback mechanism plays a crucial role in the self-organization and stabilization of the desired optical states within the microresonator. The extended path length and distributed nature of the fiber loop provide an inherent robustness and passive stabilization that is difficult to achieve with purely on-chip designs.
This architectural enhancement allows the system to efficiently build up and maintain stable optical microcombs. The continuous interplay between the chip and the fiber loop ensures that the optical states not only form spontaneously but also remain remarkably resilient to external disturbances. This inherent stability is a critical differentiator, enabling the generation of a high-quality microcomb that can be reliably converted into several precisely spaced millimeter-wave frequencies simultaneously. The robustness of this system against environmental perturbations, often a major hurdle in deploying precision optical technologies outside of controlled laboratory settings, underscores its practical viability.
Beyond mere generation, the researchers demonstrated an impressive degree of control over the optical "rainbow" produced by their microcomb. They showed the ability to selectively manipulate the strength of individual frequencies within the comb, either increasing or decreasing their intensity. Crucially, this manipulation did not compromise the overall precision and stability of the optical microcomb, a vital characteristic for high-fidelity signal generation. Furthermore, the team meticulously verified that this high level of precision and stability was faithfully preserved even after the optical frequencies were converted into millimeter-wave signals. This preservation of signal integrity across the conversion process is paramount for applications demanding stringent accuracy and reliability.
The capability to dynamically adjust the power of individual frequencies within the comb offers immense flexibility for future communication and sensing systems. Different applications will undoubtedly require varying combinations and power levels of frequencies. For instance, a 6G base station might dynamically allocate more power to certain channels during peak data traffic, or a radar system might optimize its frequency profile for enhanced target detection or imaging resolution. This level of granular control positions the technology as a highly adaptable solution for a diverse array of use cases, enabling intelligent and reconfigurable spectral utilization.
The ramifications of this highly stable and controllable multi-frequency generation extend significantly into the realm of quantum technologies. Precision timing is a foundational requirement for many emerging quantum applications, including quantum computing, quantum sensing, and secure quantum communication networks. These fields demand an unprecedented level of accuracy and synchronization, often measured in femtoseconds or even attoseconds. Traditional atomic clocks, while offering supreme accuracy, are typically large, power-intensive, and delicate, limiting their deployment. The development of a compact, robust, and highly precise microcomb system capable of generating stable timing signals could revolutionize the portability and accessibility of quantum technologies, potentially enabling compact quantum sensors for navigation, robust quantum key distribution systems, and even distributed quantum computing architectures.
The transition from a laboratory-based experiment to a commercially viable product always presents a formidable engineering challenge. While the core microchip component is indeed minuscule, the current system, incorporating the external optical fiber loop and associated control electronics, occupies a tabletop footprint. The research team is actively pursuing avenues for miniaturization, aiming to significantly reduce the overall size and power consumption of the system. The aspirational goal is to compact the entire apparatus to the size of a shoebox, a form factor that would unlock a multitude of practical applications and facilitate widespread adoption.
One particularly compelling application area under active investigation is deployment aboard satellites. In space, minimizing size, weight, and power (SWaP) consumption is critically important due to launch costs and operational constraints. A compact, energy-efficient microcomb system could provide precise timing for satellite navigation, enhance satellite-to-earth and inter-satellite communication links, and even serve as a stable frequency reference for space-based scientific instruments, enabling unprecedented accuracy in Earth observation and deep-space exploration. The inherent robustness of the developed system against environmental perturbations, a characteristic vital for space applications, further reinforces its potential in this domain.
Further research is also focused on rigorously characterizing the ultimate accuracy and long-term stability of this novel microcomb system. This involves meticulous comparisons against existing precision clocks and exploring its direct utility in advanced timing, navigation, and positioning (PNT) applications. Such investigations are often conducted through strategic collaborations with national metrology institutes, such as the National Physical Laboratory (NPL), and participation in broader initiatives like the UK Hub for Quantum Enabled Position, Navigation and Timing (QEPNT). These partnerships are crucial for validating the technology against the highest standards of precision and for integrating it into a broader ecosystem of advanced PNT solutions, offering resilience and accuracy in environments where conventional satellite navigation systems might be compromised.
The collaborative nature of this research, bringing together diverse expertise from multiple international institutions, underscores the complexity and interdisciplinary nature of pushing the boundaries in photonics and telecommunications. This innovative "rainbow on a chip" technology represents more than just an incremental improvement; it signifies a foundational shift in how high-frequency signals can be generated and controlled. By addressing the critical need for stable, multi-channel millimeter waves and ultra-precise timing, this development is poised to play a transformative role in shaping the next generation of wireless communication, unlocking the full potential of quantum technologies, and enabling new frontiers in scientific discovery and industrial innovation. The journey from laboratory breakthrough to widespread deployment remains, but the path forward appears significantly clearer with this remarkable stride in photonic engineering.
